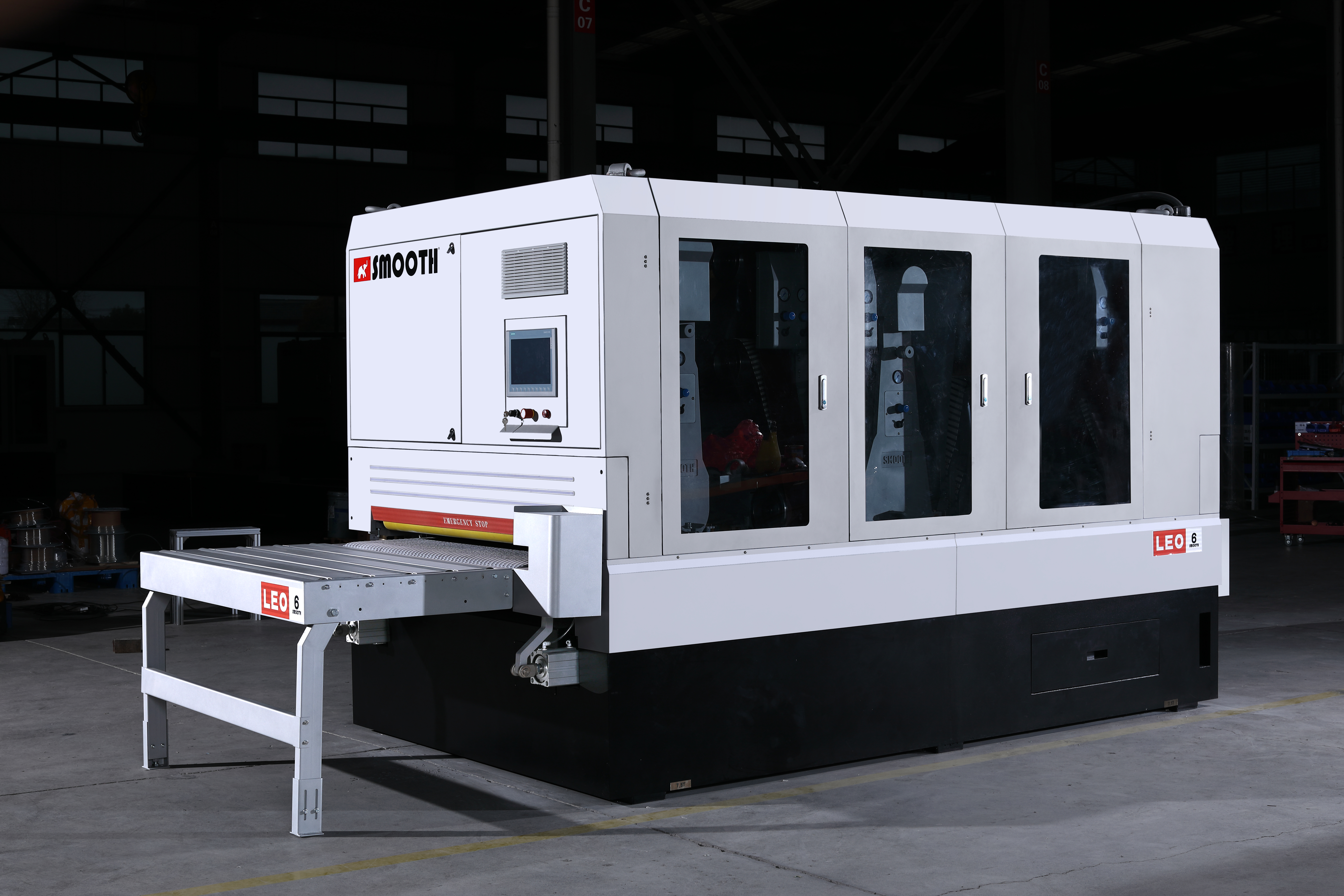

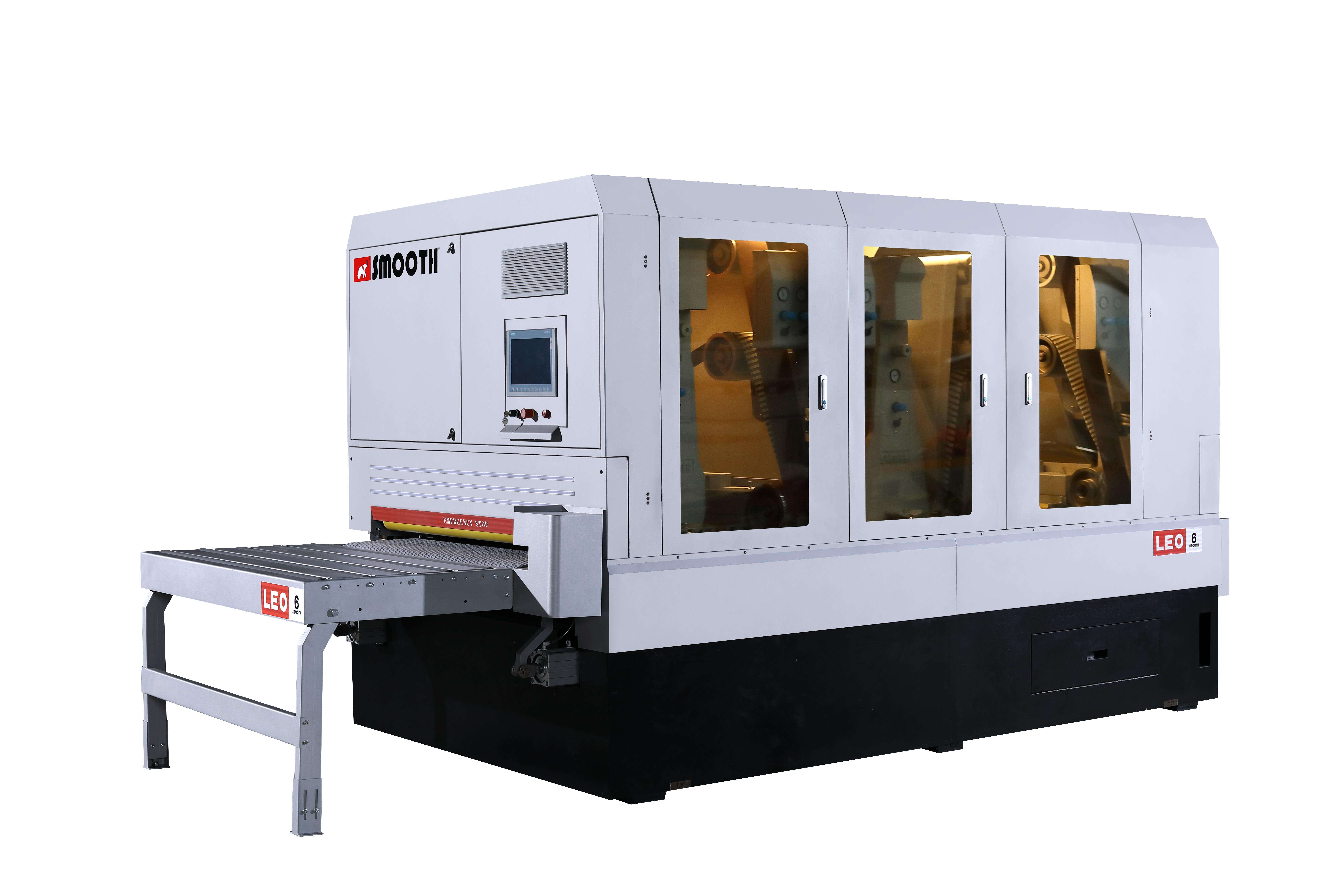

LEO 6 Sanding Center High-End Modular Sanding Solution for Precision Wood Surface Processing
Overview
The LEO 6 Sanding Center is our flagship model in the LEO Series—designed for manufacturers who demand maximum
flexibility, intelligent automation, and superior surface results. With up to 6 configurable sanding units, LEO 6 delivers
high-performance sanding for a wide range of applications including calibration, fine sanding, cross sanding, brushing,
texturing, and edge protection. Built on a modular design philosophy, the LEO 6 adapts seamlessly to different materials
, product sizes, and finish quality requirements. Whether you're working with solid wood, veneer, MDF, or lacquered panels
, LEO 6 provides the precision and control needed in modern production lines.
Key Features

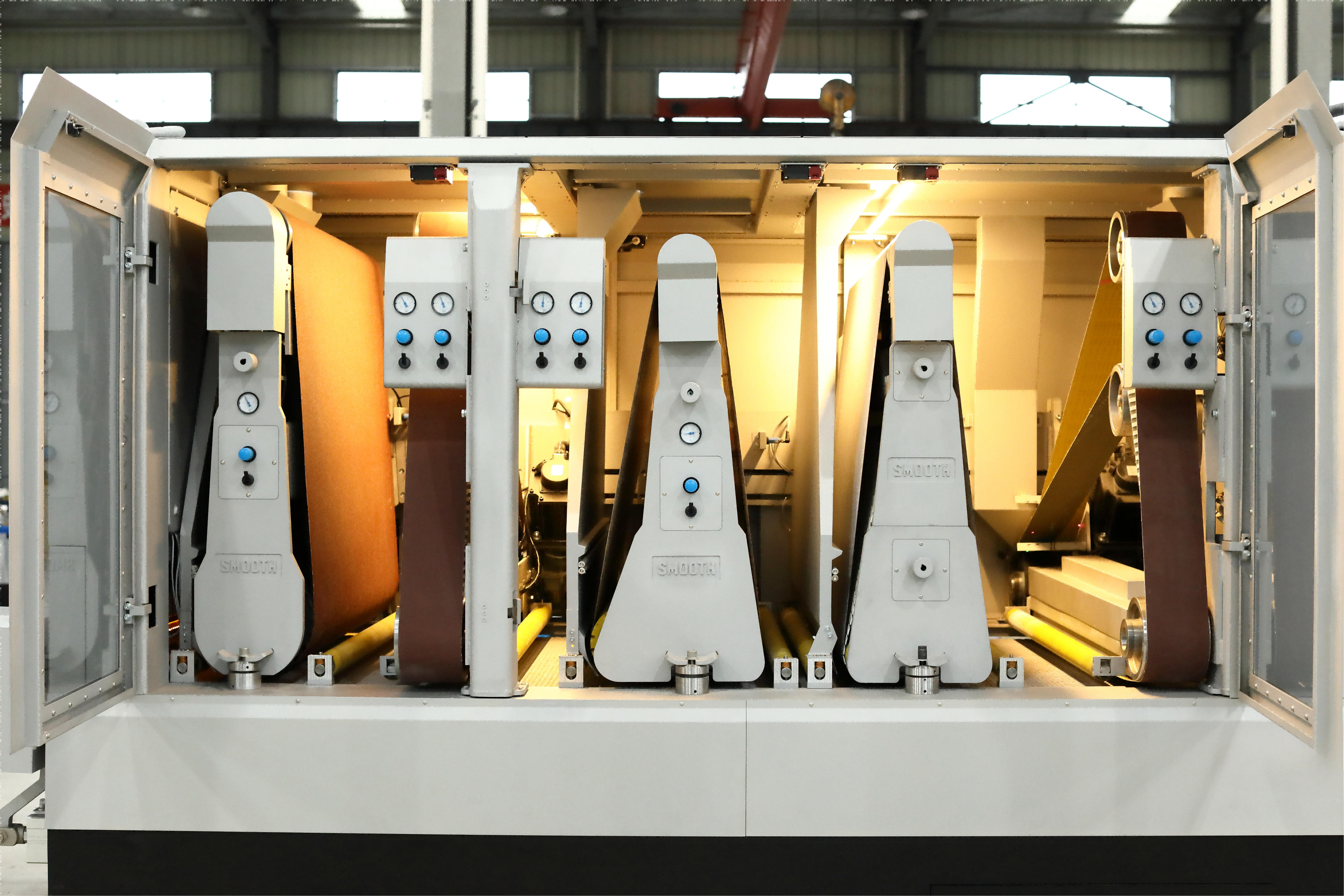

• ✅ Up to 6 Modular Sanding Stations
Configure with contact rollers, cross belts, combi heads, segmental pads, brushing or texturing units.
• ✅ Smart Segmental Pad System (Optional)
Intelligent pressure control with up to 80 sensors for high-precision sanding and edge protection.
• ✅ Cross + Longitudinal Sanding Capabilities
Achieve superior grain consistency and surface smoothness across all workpiece types.
• ✅ Fully Automated Height Adjustment
Auto thickness detection and real-time adjustment for consistent sanding results.
• ✅ User-Friendly Interface
Touchscreen HMI with recipe management, machine status monitoring, and easy parameter settings.
• ✅ Heavy-Duty Build Quality
Industrial-grade components for long-term stability, accuracy, and reliability.
Applications
• Wood panel calibration and finishing
• Veneer and lacquer sanding
• Fine finishing for MDF or composite boards
• Brushing/texturing for decorative surfaces
• Multi-layer panel sanding (e.g., flooring, furniture, doors)
Technical Specifications
Max Working Width 1350 mm
Max No. of Sanding Units 6
Abrasive Belt Size 1370 x 2620 mm
Feed Speed 5–45 m/min (adjustable)
Workpiece Thickness Range 2–110 mm
Pad Pressure Control Pneumatic / Segmental
Optional Operation Panel 15” Touchscreen HMI
*Custom configurations available on request.
Why Choose LEO 6?
• Flexible Setup – Tailor the machine to your specific process
• Globally Approved – Trusted by clients in Europe, Asia, the Middle East, and South America
• Future-Proof – Ready for smart factory integration and automation upgrades
• Service-Friendly – Easy maintenance access and optional remote diagnostics
Ready to Transform Your Sanding Process?
Contact us today to learn more about how the LEO 6 Sanding Center can be adapted to your production needs.
