Adding another sanding head may seem like the obvious answer. It is not always the right one. The number of sanding heads describes process capacity; the task assigned to each unit determines how the surface is formed.

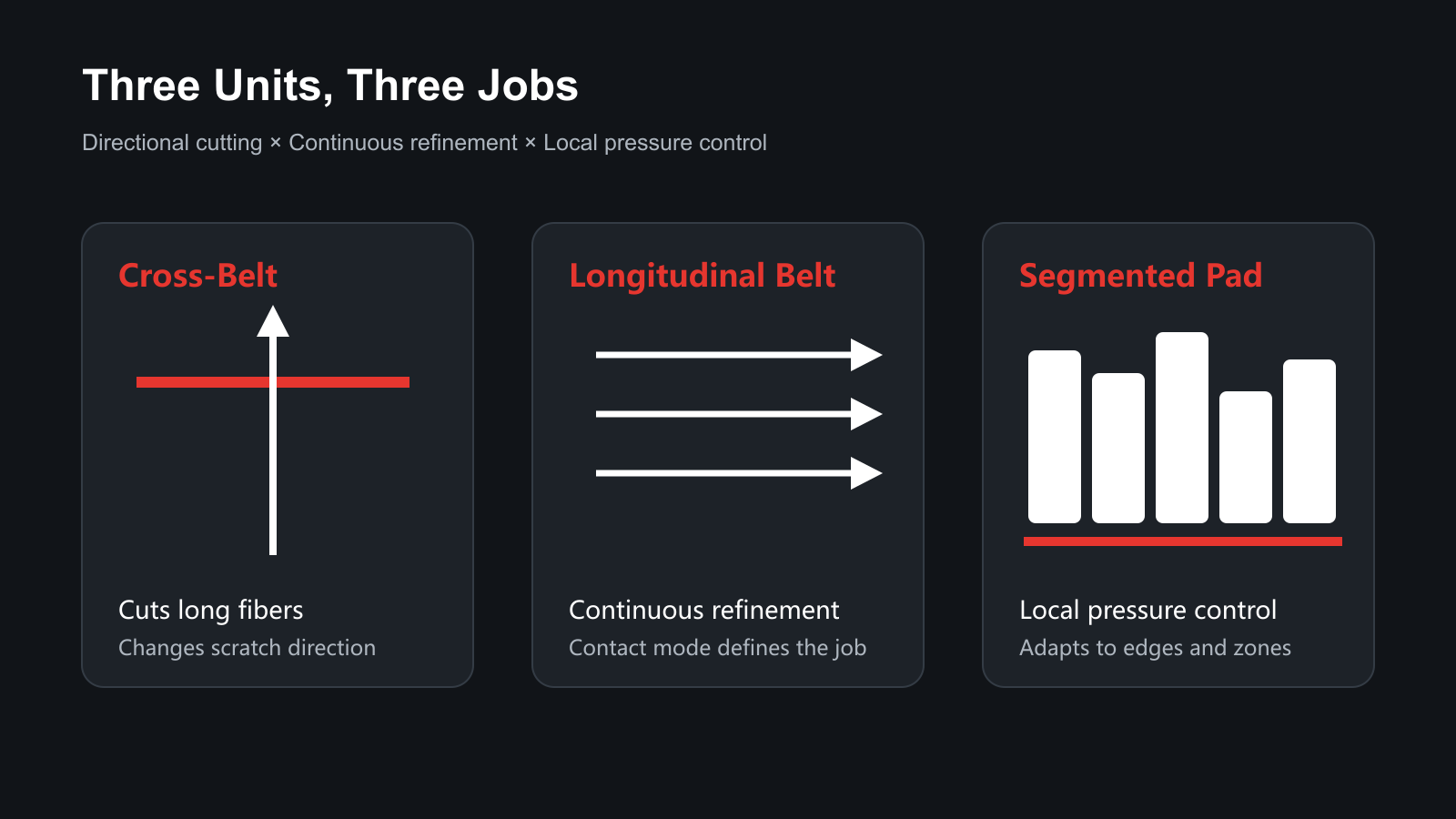

A cross-belt unit works across the feed direction. In suitable woodworking processes, it can interrupt long fibres, change the scratch pattern left by an earlier operation and prepare the surface for a later longitudinal finishing step.
Cross sanding is not automatically finer, and it is not necessary for every material. Its value depends on the fibre structure, incoming machining marks, coating requirements and the unit that follows it.
A longitudinal wide-belt unit can be used for calibration, pre-sanding or fine sanding. Its actual role depends on the contact element, abrasive, pressure strategy and process settings.
A contact roller and a sanding pad may run in the same direction, but they do not apply force to the workpiece in the same way. Describing them only as the “first” or “second” head hides this important difference.

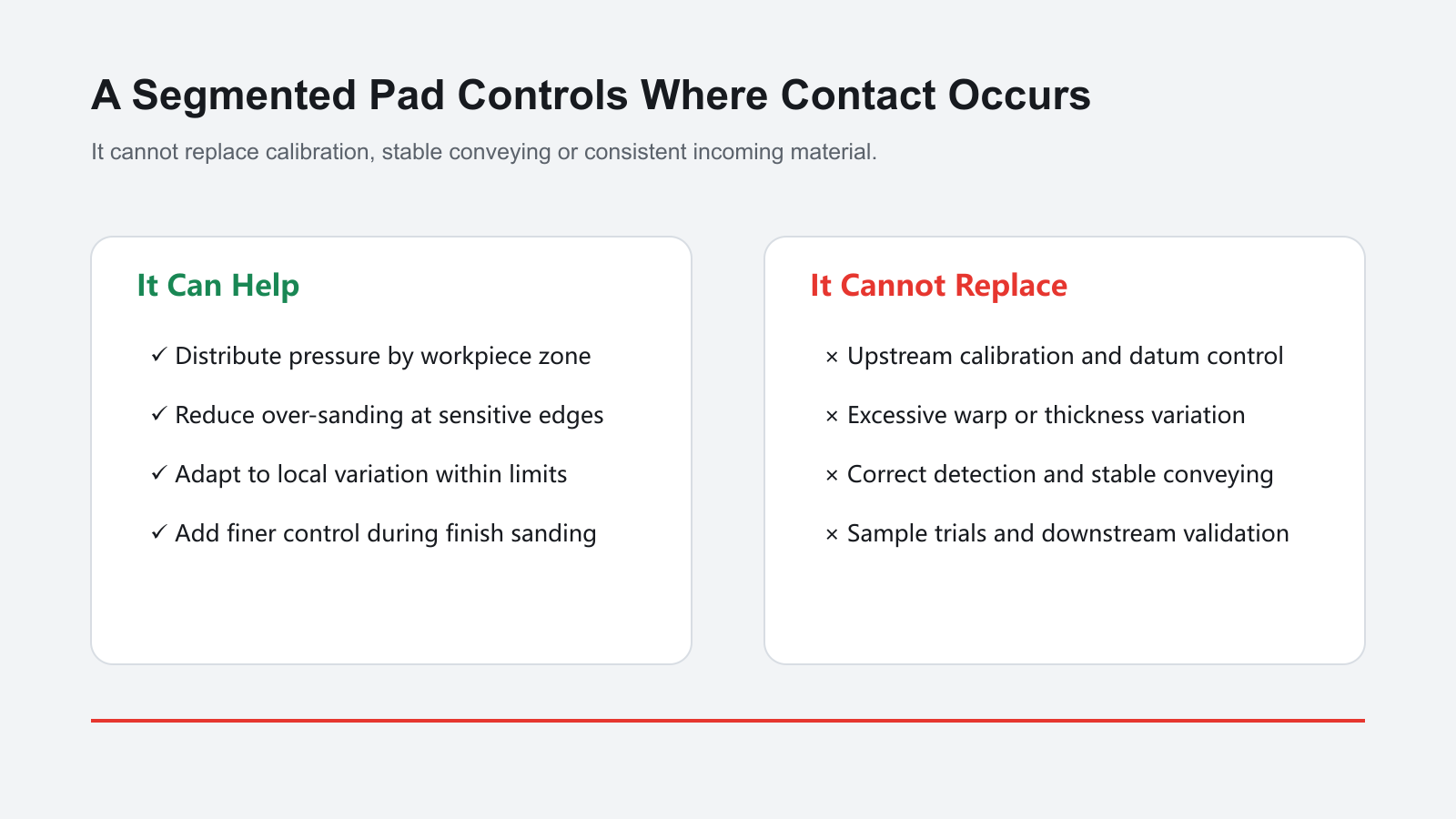

A segmented sanding pad divides the pressure beam into controllable zones. Its purpose is to adapt contact across the workpiece and manage sensitive areas such as edges or local thickness variation.
It does not change the sanding direction. Segment width, detection method, pressure control and allowable workpiece variation are machine-specific and should be confirmed for the selected configuration.
The cross-belt unit can change the fibre and scratch pattern. A later longitudinal unit can then refine the surface and remove the transverse traces. This is a useful process sequence, but not a universal formula.
Four variables can change the correct sequence:
Material: solid wood, veneer, MDF, primer and composite surfaces respond differently.
Objective: calibration, knife-mark removal, veneer preparation and intermediate lacquer sanding are separate tasks.
Risk: veneer sanding-through, edge over-sanding, heat and abrasive loading require different contact strategies.
Next operation: staining, laminating, spray coating and roller coating do not accept the same surface condition.
The sequence should therefore be validated with representative samples and boundary-condition workpieces.
When the task of each unit is unclear, additional passes can add heat, repeat the same scratch mechanism and make setup more difficult. Define the defect or process target first.
Transverse marks may still require a later operation. The final unit must be selected around the material and the required appearance after coating.
Local pressure control cannot replace stable feeding, correct detection, prior calibration or acceptable incoming material. Excessive bow or thickness variation remains a process risk.
The same grit can behave differently on a contact roller, a conventional pad and a segmented pad. Grit must be evaluated together with the contact method, abrasive construction, speed and target surface.

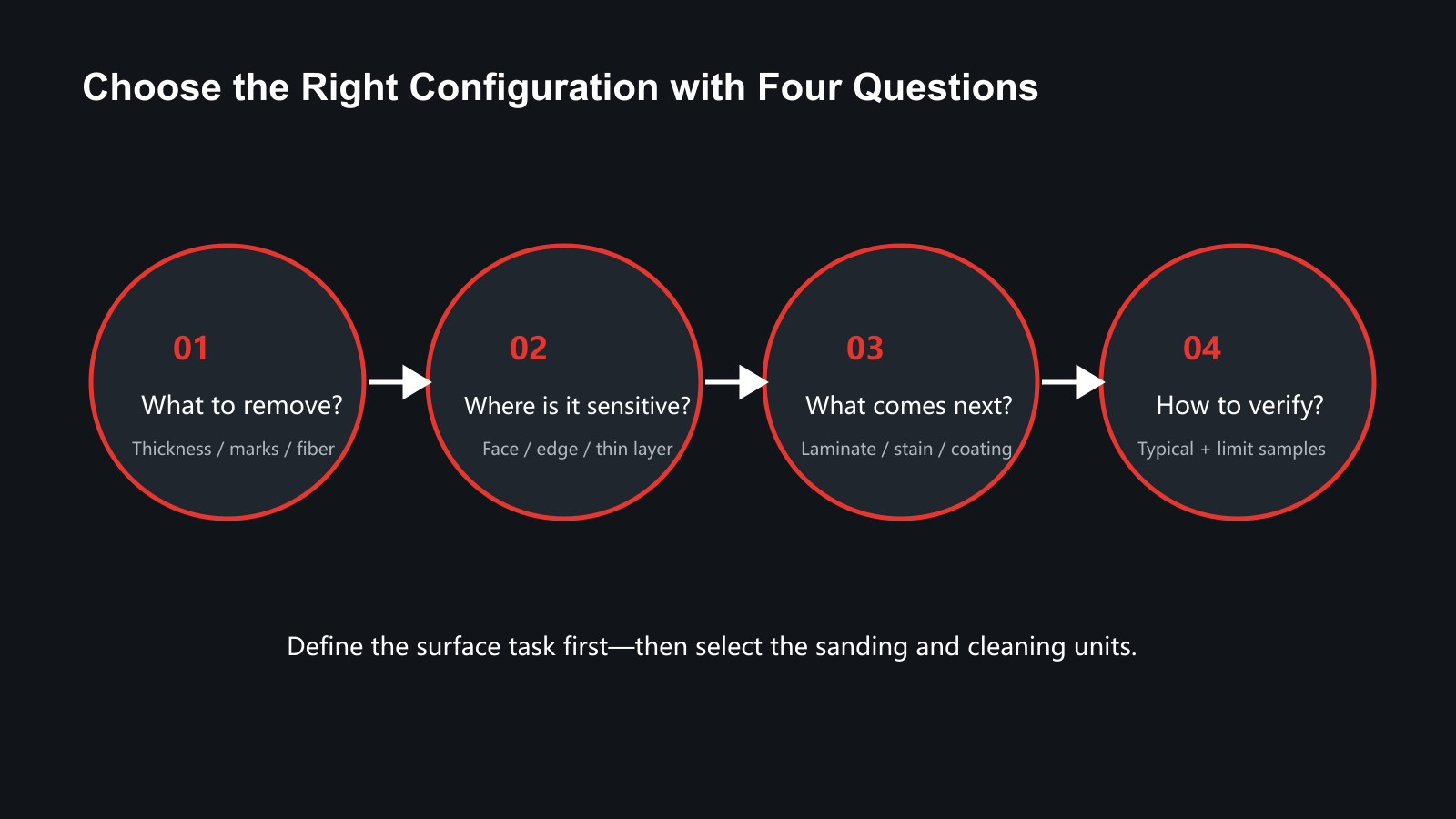

What must be removed: thickness variation, knife marks, long fibres, coating particles or scratches from the previous step?
Which area is most sensitive: the main face, edges, veneer, profiles or a thin coating layer?
What does the next operation require: laminating, staining, priming, top coating or direct delivery?
How will the process be verified: typical samples, boundary samples, edge inspection and evaluation after the next finishing operation?

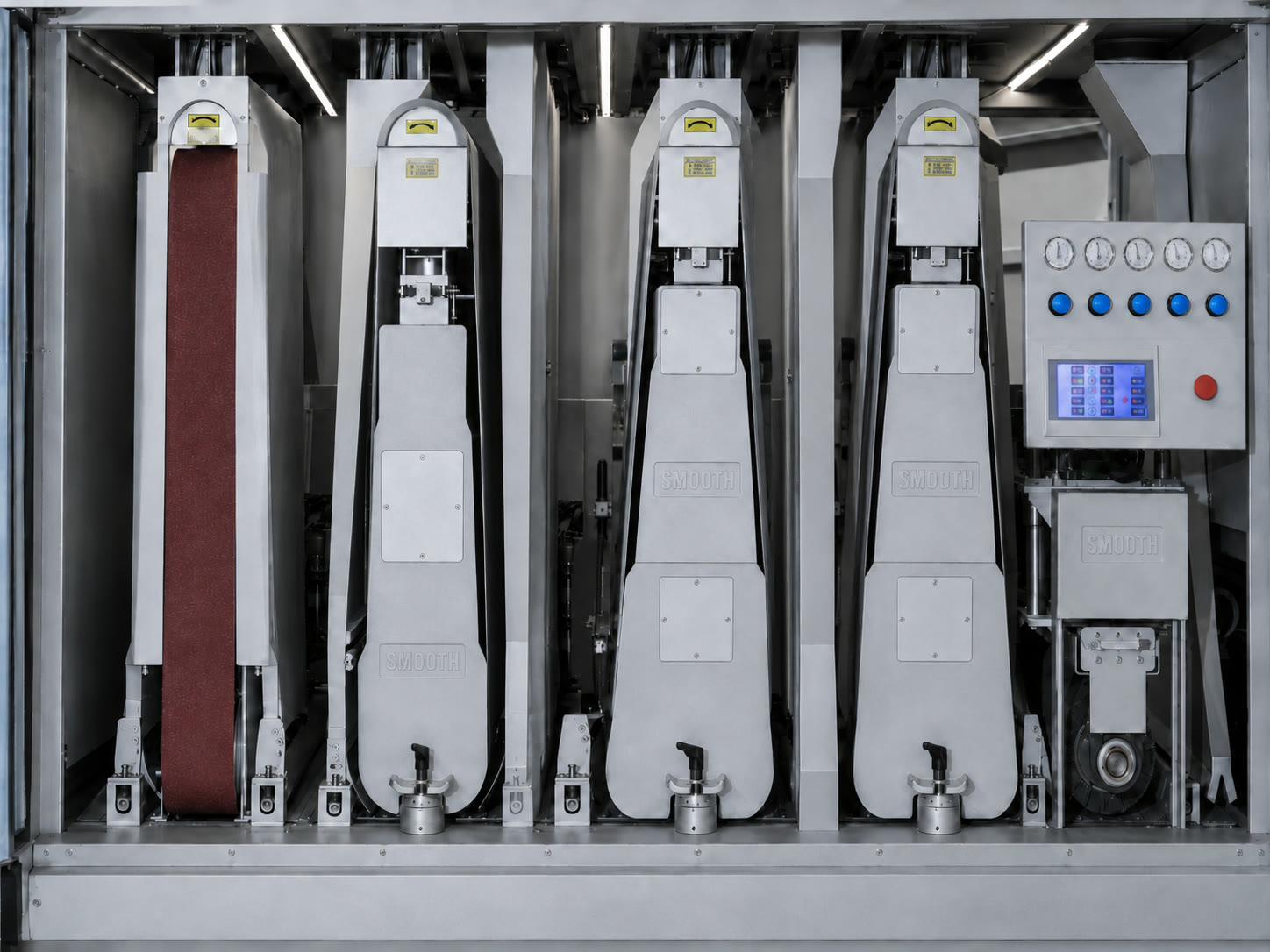

SMOOTH develops modular sanding solutions around clearly defined process tasks. Depending on the material and surface objective, a system may combine controlled stock removal, cross sanding, fine sanding, segmented pressure control, brushing or cleaning.
The engineering question is not how many units can be installed. It is what each unit needs to correct, what risk it must avoid and how the result will be verified on the customer’s workpiece.
Specific abrasive grit, feed speed, pressure, removal allowance and workpiece tolerance must be established through sample testing and confirmed against the final machine configuration.
The main difference is the relationship between belt motion and feed direction. Cross sanding changes the direction of the cut and scratch pattern; longitudinal sanding provides a continuous path for stock removal or surface refinement.
It is relevant when local pressure control, edge behaviour or workpiece variation matters. Its suitability depends on the detection and pressure-control system of the actual machine.
No. Begin with the material, incoming defects, required finish and next production step. Then assign a clear task to every sanding unit.
Send SMOOTH a representative sample, photos of the incoming defects, details of the next finishing process and your acceptance criteria. Our process team can use this information to define a sample-test plan and evaluate the required sanding sequence.
Technical note: machine-specific capabilities, module mapping, pressure-control functions, tolerances and performance figures require engineering confirmation before publication or quotation.
