Primer / Lacquer /Veneer Sanding Machine LEO 3-HH 1350

You are here: Home » Products » Wood » Paint Sanding(P240-P600) » Primer / Lacquer /Veneer Sanding Machine LEO 3-HH 1350

Primer / Lacquer /Veneer Sanding Machine LEO 3-HH 1350

Name: Primer / Lacquer /Veneer Sanding Machine LEO 3-HH 1350
Rating: 5.0 (13 reviews)

Customization:	Available
Warranty:	24months
Type:	Drum Wood Sander

Quantity:
Availability:





Inquire Add to Basket

Model:
LEO 3-HH 1350

Product Description

Basic Info.

Model NO.

LEO 3- HH 1350

Variable Speed

Certification

CE, ISO

Customized

Condition

New

Color

Customized

After-sales Service

Lifetime

Max. Sanding Width

1350mm

Fedding Speed

6-30m/Min

#1 Sanding Unit

Segmented Pad

#2 Sanding Unit

Segmented Pad

Transport Package

Pallet

Specification

650/1100/1350

Trademark

SMOOTH

Origin

China

HS Code

846593

Production Capacity

500

Packaging & Delivery

Package Size

230.00cm * 230.00cm * 230.00cm

Package Gross Weight

3800.000kg

Product Description

Lacquer Sander/ Wide Belt Sander/Veneer Sanding Machine

Sanding Unit #1: Segmented Pad

Sanding Unit #2: Segmented Pad

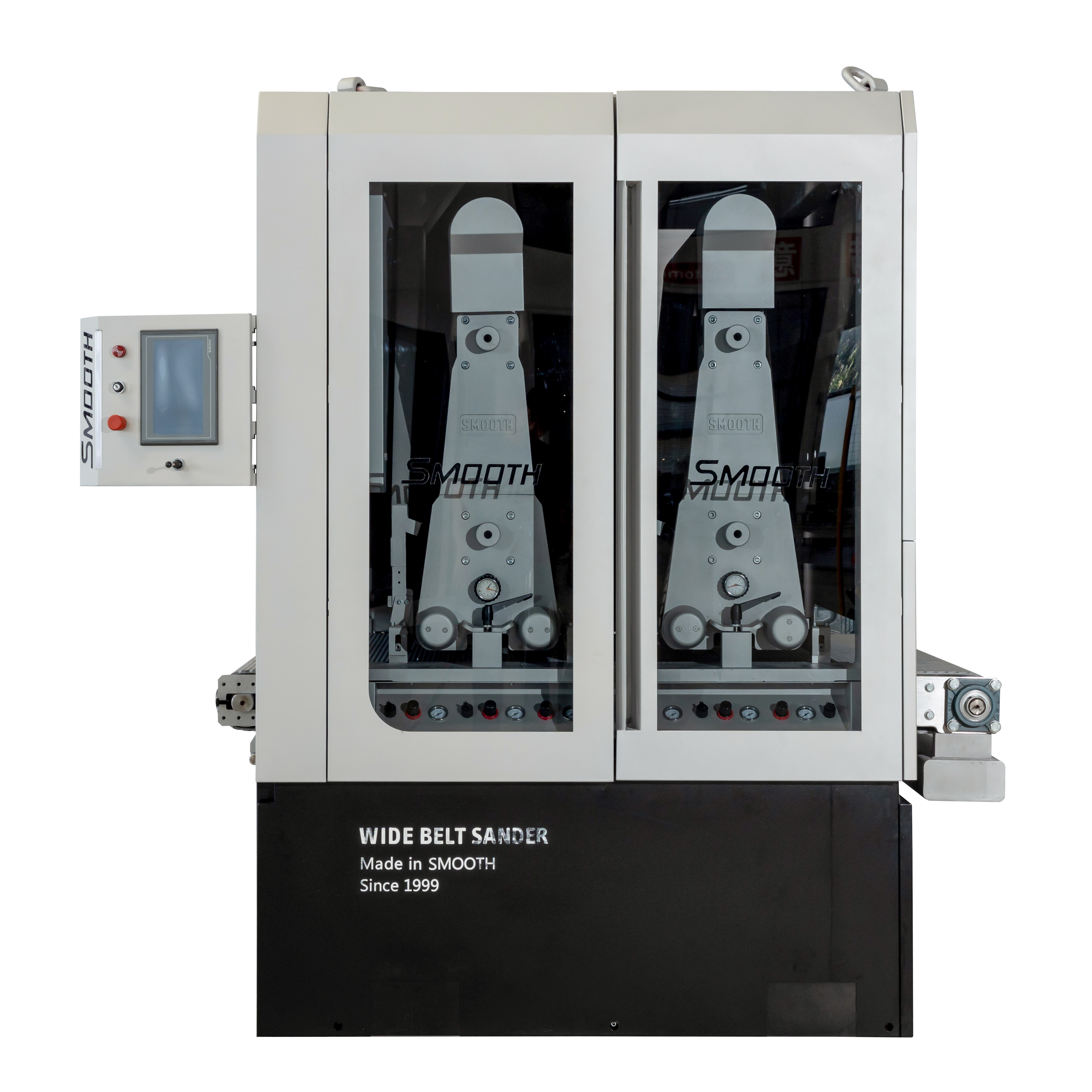

WYF_8816

Main motors with thermal relay protection;
SIMENS PLC
SIMENS Touch screen.
Main bearing: SKF
Pneumatic components FESTO / AIRTAC
Optoelctronic switch: SICK

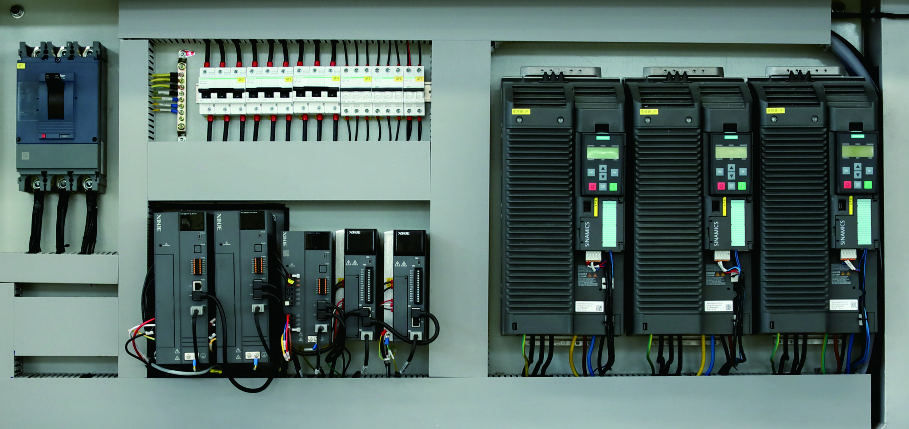

P11.4

Safety Protection

The LEO series sanding machine is designed with comprehensive safety measures to ensure personnel protection and machine reliability.

• Emergency Stop Buttons:

Multiple E-stop buttons located at infeed, outfeed, and control panel areas.

• Safety Door Interlocks:

Maintenance and inspection doors are interlocked — machine halts operation if any are opened.

• Conveyor Safety Monitoring:

Conveyor belt equipped with tension control and position deviation sensors.

• Motor Overload & Thermal Protection:

All key motors are monitored to prevent overheating or damage.

• LED Warning Light Tower:

Real-time machine status and fault signaling via tri-color tower light.

• Main Power Isolation Switch:

Centralized emergency power shut-off, padlockable for lockout/tagout (LOTO).

MAX. WORKING WIDTH:	1350mm
MIN. WORKING LENGTH:	550MM
WORKING THICKNESS:	3-100MM
FEEDING SPEED:	6-30M/MIN(FREQUENCY CNOTROL)
MACHINE DIMENSION:	215021752130mm
MACHINE WEIGHT:	3600Kg

1# SANDING UNIT
·Type: Rubber Roller
·Dia : Φ215mm-320mm
·Motor: 18.5kw
·Belt Speed : 3-12m/sec (frequency control)
·Adhesive Belt Size:1390*2100mm

2# SANDING UNIT
·Type: Rubber Roller
·Dia : Φ215mm-320mm
·Motor: 18.5kw
·Belt Speed : 3-12m/sec (frequency control)
·Adhesive Belt Size:1390*2100mm

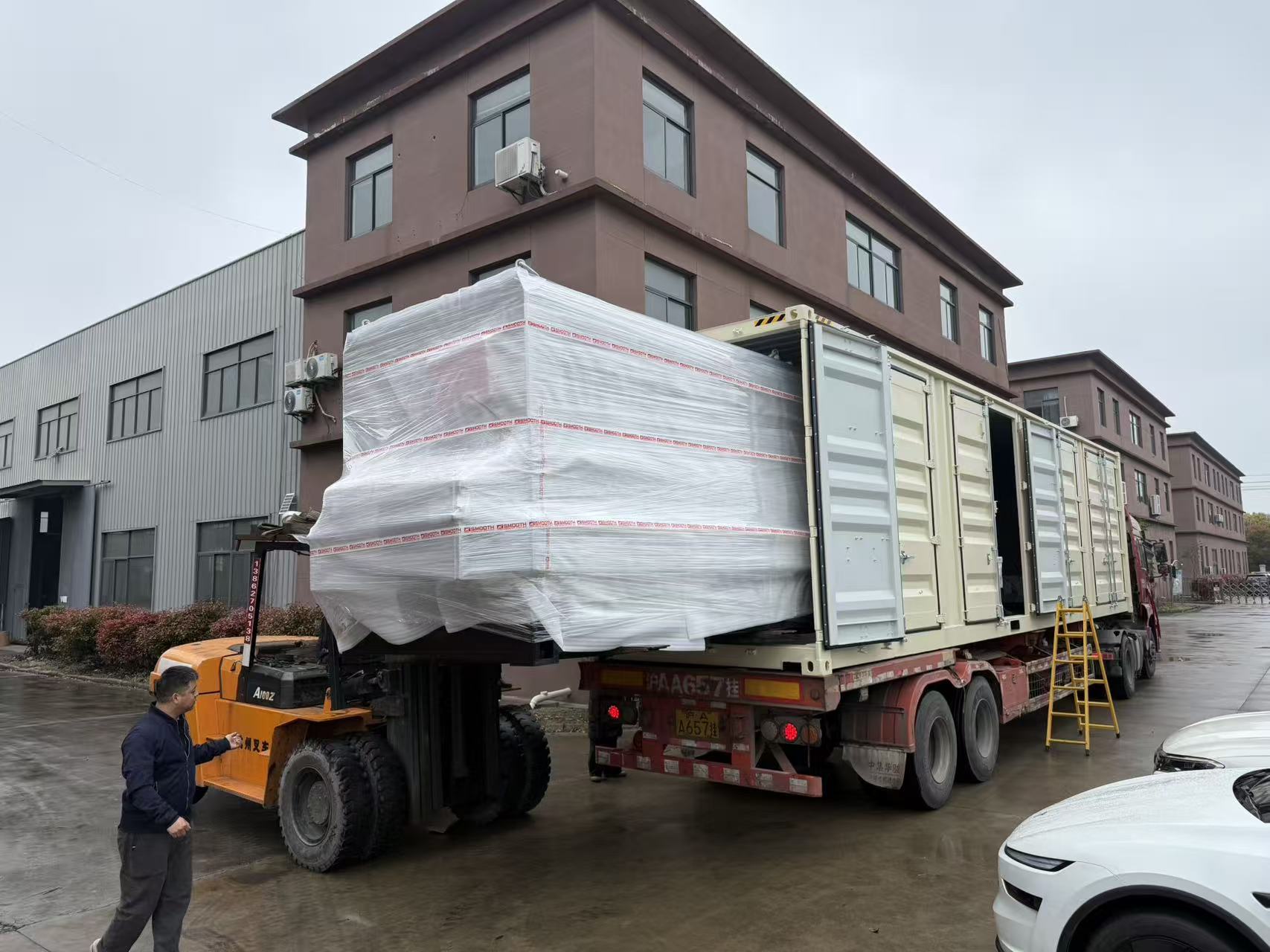

Packaging & Shipping

微信图片_20260515104647_642_57

Lacquer sanding
Veneer sanding

belt sander Surface Finish Quality primer sander paint sander floor sanding line Woodworking Sanding Machines smooth sanding machine smooth sander Precision Sanding Machines Veneer sander
